Basic Concepts of Information Retrieval

LIS 4/5523: Online Information Retrieval

Dr. Manika Lamba

Introduction

• Data and information generation in every discipline in the universe of knowledge has seen staggering growth

• Storing, managing, querying, & retrieval of huge amount of data & information needs sophisticated procedures & advanced technologies

• Nowadays, information collection is web-based and online which is vast and growing at an exponential rate

Hello everyone! This week’s lecture provides you with a brief overview of information retrieval (IR) systems, users of IR systems, and the topics we will cover in this course.

In this class we will learn about online information retrieval. The first part of class will focus on the HOW of information retrieval systems: how they work, how they are structured, different IR models and technologies, and the role that users play when designing an information retrieval system.

The second part of class will introduce you to searching strategies that will make you a better searcher in many different systems.

Lastly, in the third part of class you will use your new search skills in various databases and on the Web.

Knowing how systems work, the decisions made while developing them, and how they are structured will make you a better searcher. Understanding yourself as a searcher will also help you identify areas you need to strengthen as you use online systems for your own work but also to help others conduct searches.

So, let’s get started!

The idea of doing information retrieval is driven by one fundamental fact, and that is the digital revolution.The digital revolution happened extremely quickly and profoundly. For example, the figures shown on the slide is taken from Hilbert and Lopez (2011) paper which showed that the in the late ’80s, 99% of the information in the world was stored in analogue form, for example on papers. Then, the digital part of information grew but then after the year 2000, it just exploded. They estimated that in the year 2002, for the first time, the world was able to store more digital than analog information. We still have papers around but by now, digital information counts for more than 99% of all the information.

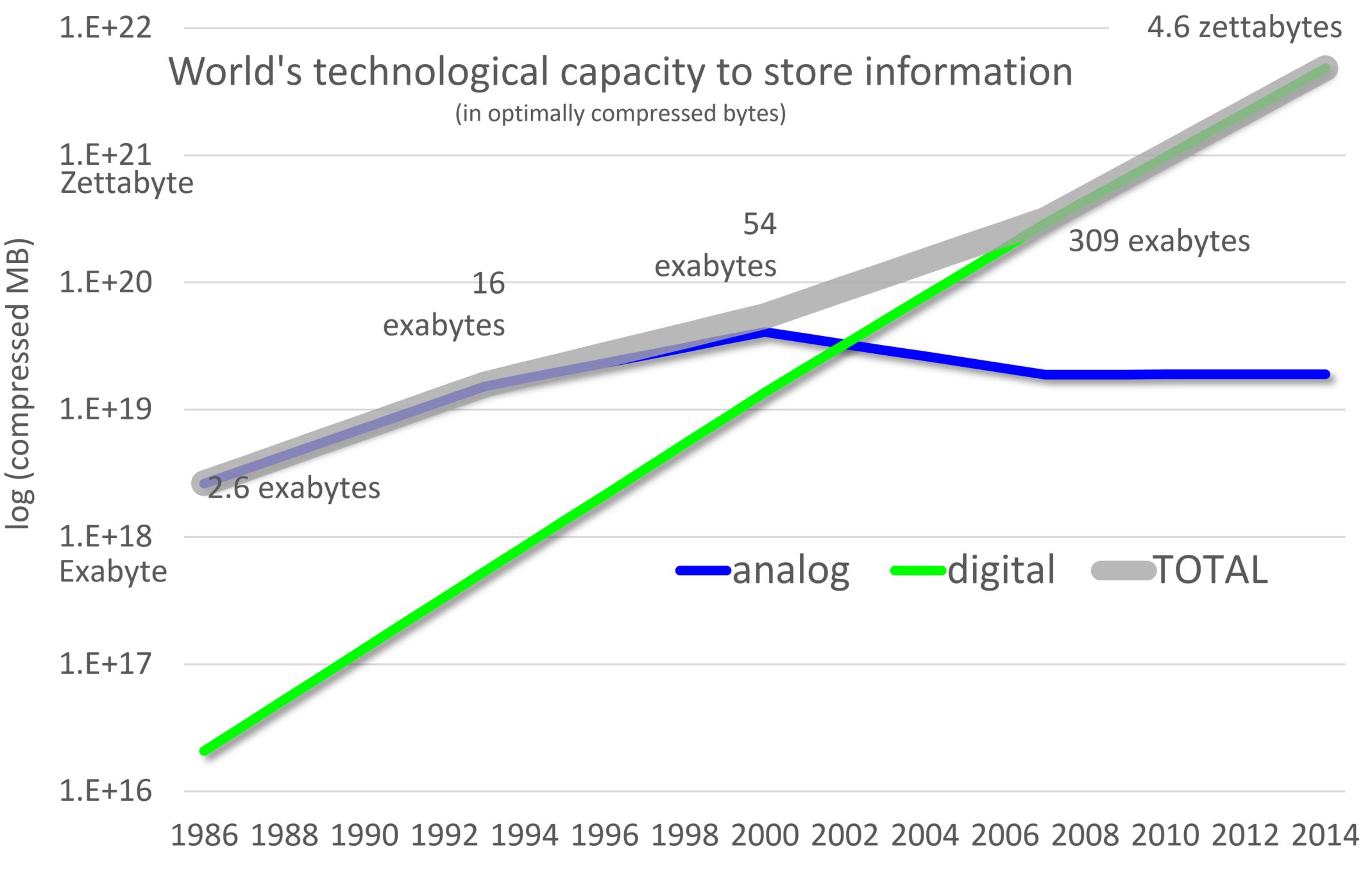

So in the year 2014, when they last updated the data, they found that the world was able to store five zettabytes. How far is five zettabytes? If you would take all this information that you have on your hard disk and your cell phones and microchips on the back of your credit card, and you would put this in books, and you would make a pile, how high do you think the pile would reach? Would reach to the moon? Or to the sun?

It will reach 4,500 times to the sun!! So there will be 4,500 piles from the Earth to the sun with books. So, in 2014, we had 4,500 piles of books. That’s all we were able to accumulate during human history, and now we’re doubling it ever since.

So, we restore as much new information as all the information we were ever able to, there’s a lot of information to dig into and all the time you’re producing a lot more and it’s in digital format. That means then we need a system to compute it and use some system in order to retrieve it.

We live in a time where we’re constantly generating new information and not just a little, but as much as we’ve ever been able to capture. Every day, more knowledge is being produced, and now it’s all in digital form. That’s powerful, because digital information can be stored and preserved almost endlessly.

But here’s the challenge: with so much of it out there, we can’t rely on memory or manual systems anymore. We need computational systems to make sense of it — to process, organize, and connect it. And just as important, we need retrieval systems so that when we ask a question, we can actually pull the right piece of knowledge out of that vast ocean of data.

So, it’s not just about storing information, it’s about creating the ability to use it — instantly, effectively, and intelligently.

Information Retrieval

Definition

A process in which sets of records or documents are searched to find items which may help to satisfy an information need

Now, let’s define Information Retrieval (IR). It is a process of matching a particular document with a set of other relevant documents. Suppose you have an extensive collection of documents and you want to find a relevant document. This text mining task retrieves the relevant documents based on the best matches of input document with the collection of documents based on a similarity measure.

In other words, IR is about bridging the gap between the user’s question and the vast universe of available information.

Information Retrieval

Information Retrieval includes:

• Representation

• Storage

• Organization

• Document Clustering

• Classification of Documents

• System Architecture

• Information & Data Visualization

• Allied Services

• Ranking of Documents

• Semantic Linking

• Filtering

• Others

• Search engines have been developed based on the concepts, principles, and techniques developed by IR

Now, what does that actually involve? As you see on this slide, IR is not just about search in the narrow sense. It encompasses several key components:

On the left side, we have the foundational activities —– things like representation, which is how we describe documents; storage and organization, which ensure information can be managed at scale; and techniques such as document clustering and classification, which group or categorize information meaningfully. And of course, all of this requires careful consideration of system architecture, the technical backbone of IR.

On the right side, we move into more advanced or applied aspects –— information and data visualization, which helps users interpret results; allied services, which extend retrieval into related tasks; ranking of documents, which determines which results appear most relevant; semantic linking, which connects related pieces of knowledge; and filtering, which helps reduce noise and personalize outputs. These ensure that IR is not just functional, but also efficient and user-centered.

Finally, it’s worth emphasizing that search engines, which we all use daily, are the most visible application of these IR principles. The concepts and techniques you see here form the foundation of systems like Google, Bing, and countless specialized retrieval platforms.

Brief History of Information Retrieval

{Zoom-in to see the figure or Right-click to save it!}

Information retrieval systems today are based on techniques that were introduced in the 1960s and while the abilities of systems and the algorithms used have been refined, the process of retrieval remains the same.

IR is primarily text-based, meaning that we retrieve documents, those documents may be textual, we use queries that are text, and we search representations that are text. There are definitely other forms of IR and other formats of documents that are retrieved but regardless the process remains the same.

In database systems, whether a flat file system or relational database, each field that is indexed (meaning it is searchable by users) produces what is called an inverted index of index terms. It is this index that is searched.

Even web search engines like Google use inverted indexes and when you search the engine, you are searching the index of terms. Of course there are other systems that provide full text searching or even full document searching, but there are also limits to what is searched in each.

We will talk more about IR models and how they work in systems later in the course.

IR is no longer just a problem for libraries. IR systems are used everywhere and by anyone who has an Internet connection via their computer, smart phone, tablet or other mobile device.

Brief History of Information Retrieval

• System for the Mechanical Analysis and Retrieval of Text (SMART) was developed by Gerard Salton in Cornell University in 1960s. This system incorporated many important concepts like vector space model, relevance feedback, and Rocchio Classification

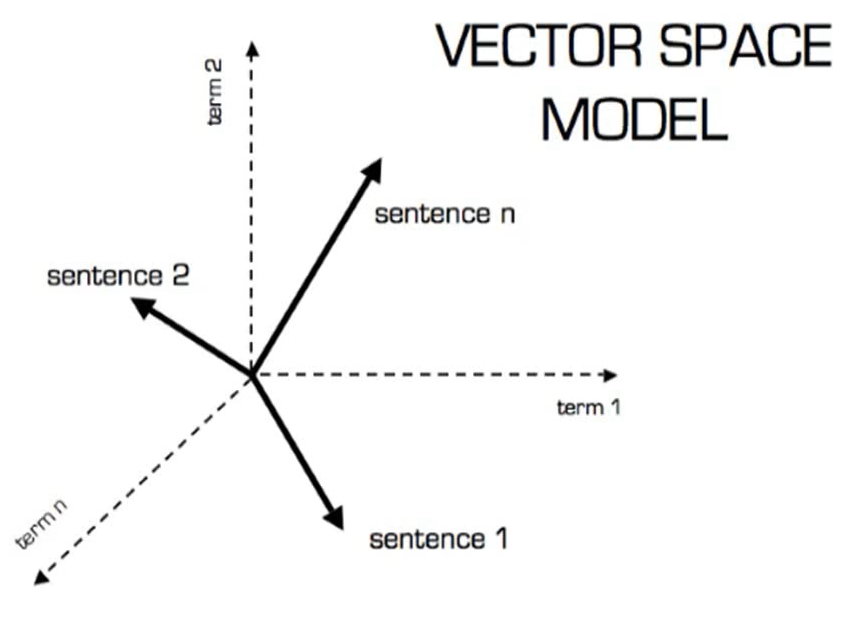

The SMART system, or System for the Mechanical Analysis and Retrieval of Text, was one of the earliest and most influential projects in Information Retrieval. It was developed in the 1960s at Cornell University by Gerard Salton, who is often considered the father of IR.

What made SMART so important is that it wasn’t just a system, it was a research platform. It introduced and tested many of the core ideas that modern search engines still rely on. For example, SMART gave us the vector space model, representing documents and queries mathematically so that we could measure similarity. It also introduced term weighting methods like TF-IDF, which balance how frequent a word is within a document against how rare it is across the collection.

Another innovation was relevance feedback, the idea that the system can improve results by learning from what the user marks as relevant or irrelevant. And just as importantly, it also developed evaluation methods, such as precision and recall, to measure retrieval effectiveness in a systematic way.

While the SMART system itself no longer exists, its principles form the foundation of everything from academic IR research to commercial search engines like Google today.

Brief History of Information Retrieval

• J.W. Sammon (1969) gave the idea of visualization interface integrated to an IR system in his famous paper “A nonlinear mapping for data structure analysis”

• First online systems–NLM’s AIM-TWX, MEDLINE; Lockheed’s Dialog; SDC’s ORBIT

• During 1966-67, F.W. Lancaster evaluated the MEDLARS (Medical Literature Analysis and Retrieval System)

In the late 1960s, researchers began thinking about how information retrieval systems could move beyond simple text search. One key idea came from J.W. Sammon in 1969, who proposed a visualization interface integrated into IR systems. In his influential paper, A Nonlinear Mapping for Data Structure Analysis, he laid the groundwork for techniques that help us see patterns in data, something that’s become critical in modern IR with clustering and visualization tools.

Around the same time, the first online IR systems were emerging. Examples include the National Library of Medicine’s AIM-TWX and MEDLINE, Lockheed’s Dialog, and SDC’s ORBIT. These systems were groundbreaking because they provided searchable access to specialized literature, especially in science and medicine, long before the web existed.

And during 1966–67, F.W. Lancaster conducted a major evaluation of MEDLARS, the Medical Literature Analysis and Retrieval System. His studies were among the first systematic evaluations of an IR system, focusing on how effective it was in retrieving relevant documents. This was crucial, because it marked the beginning of formal evaluation practices in IR, something that still defines the field today.

Brief History of Information Retrieval

• AM SIGIR Conference started in 1978 which subsequently emerged as the apex conference in IR systems

• Belkin, Oddy, and Brooks gave the concept of Anomalous State of Knowledge (ASK) for information retrieval in 1982

• OKAPI model was formulated in 1982-88 which is a set-oriented ranked output design for probabilistic type retrieval of textual material using inverted index

• Major breakthrough was in 1989 when Tim Berners-Lee proposed World Wide Web in CERN Laboratory

• TREC conference started as part of TIPSTER text program in 1992 and it was sponsored by US Defense and National Institute of Standards and Technology (NIST)

Next in 1978, the ACM SIGIR Conference began. Over time, it became the leading international conference on IR systems, what we often call the ‘apex’ conference in the IR field.

Then, in 1982, Belkin, Oddy, and Brooks introduced the concept of the Anomalous State of Knowledge, or ASK. This was a very important theoretical model because it framed retrieval as a process of resolving a gap in the user’s knowledge, not just matching keywords.

Around the same period, from 1982 to 1988, the OKAPI model was developed. This was a probabilistic retrieval model that produced ranked outputs based on an inverted index. It laid the groundwork for what later became BM25, still one of the most widely used ranking functions today.

A major turning point came in 1989, when Tim Berners-Lee, working at CERN, proposed the World Wide Web. This changed the context of IR completely, shifting from specialized databases to a global, open information space.

In 1992, the TREC conference was launched as part of the TIPSTER text program, sponsored by the U.S. Department of Defense and NIST. TREC provided standardized test collections and evaluation frameworks, which accelerated research and allowed fair comparisons between different retrieval methods.

Brief History of Information Retrieval

• PageRank algorithm was developed at Stanford University by Larry Page and Sergey Brin in 1996

• In 1997, Google Inc. was born which has now ruling dominantly in searching engine domain

• Google personalized search started in 2005

• Multimedia IR (Smeulders, Lew, Sebe) integrates into search in 2010

• Semantic models came first in 2013-2014 such as Word2Vec, GloVe

• Google introduces BERT in 2018

• Conversational IR in assistants were introduced in 2020-2021 such as Alexa, Siri

• Retrieval Augmented Genreration in 2022-2023

• LSI gained huge popularity in WWW and was hugely used in Search Engine Optimization (SEO)

• Latent Dirichlet allocation (LDA), a generative/topic model in NLP was developed by David Blei, Andrew NG, and Michael Jordan in 2003

Several key developments mark the evolution of modern information retrieval systems. Some of the selected ones are as follows:

In 1996, at Stanford University, Larry Page and Sergey Brin developed the PageRank algorithm, a seminal contribution that ranked web pages based on link structure rather than just keyword frequency. This innovation became the foundation of Google’s search engine and transformed large-scale web retrieval.

Latent Semantic Indexing, or LSI, gained significant popularity with the growth of the World Wide Web. The method, originally introduced in the late 1980s, was designed to capture hidden semantic structures in text by reducing dimensionality through singular value decomposition. In the context of the web, LSI was quickly adopted in Search Engine Optimization (SEO) practices. The reasoning was that by modeling the semantic relationships among terms, web pages could be optimized not only for exact keywords, but also for related concepts and variations. This marked an early move from simple keyword matching toward a more semantically aware retrieval process.

Although later models like probabilistic topic models and neural embeddings surpassed LSI in accuracy and scalability, its role was historically important – it bridged the gap between traditional keyword-based retrieval and more advanced semantic methods.

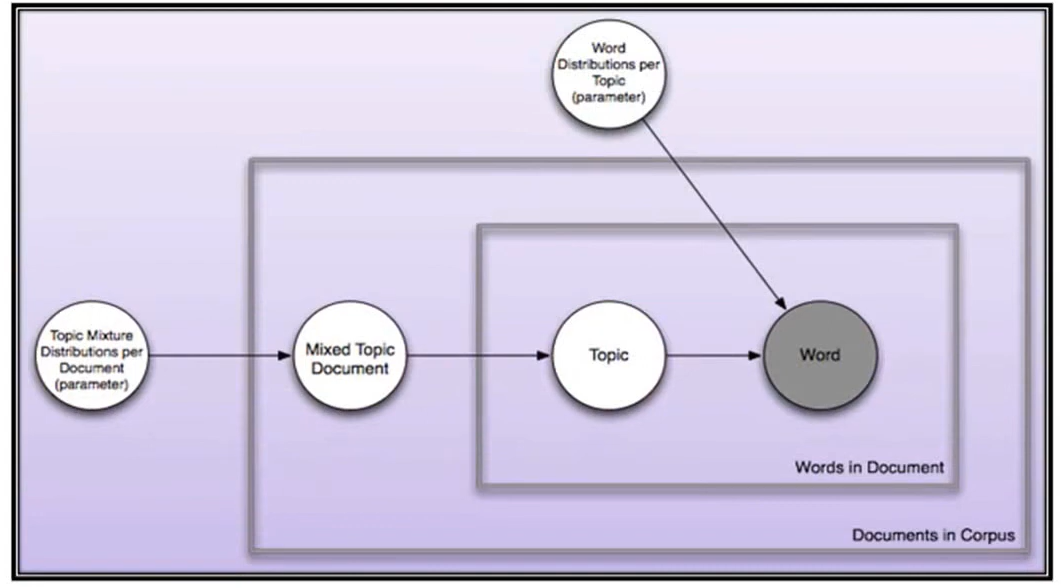

In 2003, David Blei, Andrew Ng, and Michael Jordan introduced Latent Dirichlet Allocation (LDA), a probabilistic generative model that enabled documents to be represented as mixtures of latent topics. LDA marked an important theoretical and practical advance in modeling text corpora and topic-driven retrieval.

By 2005, Google introduced personalized search, adapting retrieval results to individual user histories and profiles. This was a shift from universal rankings toward user-centered retrieval models.

In 2010, the field saw the integration of multimedia information retrieval, with researchers such as Smeulders, Lew, and Sebe working on retrieval methods for images, video, and audio. This expanded the scope of IR beyond text into multimodal domains.

The years 2013–2014 introduced the first widely adopted semantic models, particularly Word2Vec (Mikolov et al.) and GloVe (Pennington, Socher, Manning). These embedding models captured semantic relationships in continuous vector spaces and significantly improved retrieval quality.

In 2018, Google introduced BERT (Devlin, Chang, Lee, Toutanova), a deep contextual language model that revolutionized semantic search and natural language understanding within IR systems.

By 2020–2021, conversational IR emerged in mainstream use, integrated into voice assistants such as Alexa, Siri, and Google Assistant, enabling multi-turn, interactive retrieval.

Most recently, in 2022–2023, the rise of Retrieval-Augmented Generation (RAG) has combined neural retrieval with large language models, enabling systems not only to retrieve relevant documents but also to generate coherent, contextually enriched answers. This represents the convergence of IR with generative AI, defining the current frontier of the field.

Who are the Users?

A user is a person who uses information and/or information systems in some meaningful way

A user can be:

• End-user: seeks, evaluates, uses information for personal question or problem
• System-user: end user who exploits information systems at some level
• Information professional: facilitates end-user information seeking and use
• Computerized system, software program

Everyone is an information user and exploits information systems at some level. The literature uses many terms to describe users, such as end users, system users, and information professionals. They are all users of IR systems, right? End users and system users are basically the same. The term end user comes from a time in libraries when users could not access the library catalog and the librarian conducted the searching for them in a closed stack environment. When libraries became automated in the 1970s and 80s the term system users began being used to describe both the end users but also the information professionals who now had access to online resources using dumb terminals (not connected to an external server) and to a small set of subject specific databases. Your readings provide you will more of this history.

Computerized systems like bots on the web are also users of our systems, right? The bots access our OPACs to index our collections and make them accessible through search engines.

User’s Information Needs

Users are motivated to seek information in a given situation to:

• answer a question
• solve a problem
• complete a task
• learn about a subject
• verify a fact
• just for fun

Whether you are a system designer, reference librarian, or just want to become a better searcher, it is important to understand more about WHY and HOW people search for information. Information scientists have long studied what is called Information Behavior (how people find and use information to various purposes) and a subset of information behavior called information seeking, which focuses on the process, tools, and decisions associated with seeking for information.

Generally we know that users are motivated to seek information as part of a situational context to answer a question, solve a problem, complete a task, to learn more or verify a fact. What we know less about is how they seek information for fun or entertainment. There are some very interesting studies about information seeking for hobbyists, within social media, or just to surf for fun. But we need to learn more.

User’s Information Needs

Typical user questions:

• What
• When
• Where
• Why
• How

When helping users search or use different IR systems we can expect specific kinds of questions, such as WHAT, WHEN, WHERE, WHY and HOW. Drawing out a user’s actual information need, however, is often challenging as they may not know how to ask the question, how to enter a query into the system, or to use the functions of the system to find what they are looking for. In libraries, we conduct “reference interviews” but in other contexts the conversation you have with users, or that users have with a computer, is designed to extract more information about their information need, right?

Later in the course, we will talk more about how to refine an information need to conform with system parameters.

Information Needs

Two broad categories of searches:

• Known item search
• Subject or topic search

Research has also shown that there are two broad categories of searches that users conduct:

1. Known item searches – where the user knows something about the item they are seeking such as title or author

2. Subject or topic searches – the user knows some aspect of the subject or topic that they need to learn more about or that they need to find specific information about.

This is not quite as simple as it sounds. Very often a user will not know how to express their precise information need or how to implement it within a given system. They also may not remember correctly the author or title they think they know. In modern systems depending on the IR technique of the system or its capabilities to match partial search information, the user can still find useful information. We will talk more about this topic throughout the semester.

Information Retrieval Systems

A specialized system for the description, storage, and retrieval of information representations: primarily information objects (text, images) and their surrogates (metadata, records). Operates by matching queries (representations of information need) with data (representations of information objects)

In this class, we will also learn more specifics about the IR process and IR systems. As this slide notes, IR systems are specialized systems that are used for the description, storage and retrieval of information representations (or the information objects). These objects can take many forms.

Users access the records of the objects or the objects by matching search terms or queries to data or representations about the objects within the system. IR systems are set up to use algorithms that provide the “matching” function. Older systems primarily were exact match systems, meaning that the query terms and terms in the representation and/or inverted index had to match exactly.

The most significant change in IR systems is that MOST are no longer exact match systems but will match on part of the query terms. Artificial intelligence (AI) and machine learning are also changing expectations of users and how they think search engines and databases to work.

Components of IR systems

Knowledge system into which an IR system is implanted generally consists of three main components:

1. people in their role as information-processors

2. documents in their role as carriers of information

3. topics as representations

Let us now consider the basic conceptual framework of information retrieval systems.

An IR system is not an isolated tool, but rather one that is implanted within a broader knowledge system.

This system can be thought of as consisting of three interrelated components:

1. People, in their role as information processors and seekers of knowledge.

2. Documents, in their role as carriers and representations of information.

3. Topics, which function as abstract representations of knowledge domains and link users to the documents they seek.

This slide illustrates a “basic” model of how IR works. On the left side are the documents and representations that are stored by the system. On the right side are the user interactions with the system. The center section shows the matching function and the output or results of the search. Of course in a computer there is much more to it, but this gives us the basic idea of how IR works.

As Lancaster observed, the purpose of an IR system is not to directly inform the user on the subject of their inquiry. Instead, its role is more precise: to inform the user of the existence, non-existence, and whereabouts of documents relevant to their request. In its early conception, therefore, IR was fundamentally about retrieval of documents, not retrieval of information.

This notion shifted significantly with the advent of full-text availability in bibliographic databases. No longer constrained to indexes and metadata, IR systems could now operate directly on the content of documents. Originally, IR meant text retrieval systems, reflecting the textual nature of the collections.

However, modern IR systems increasingly handle multimedia information — not only text, but also images, audio, and video. This transition has required the development of new tools, methods, and techniques capable of supporting retrieval across multiple modalities. It represents one of the major conceptual and technological expansions in the field.

Model of IR System

The Chowdhury reading, Chapter 1, provides a much more complete picture, expanding each of the functions of the Blair model on the last slide. The actors of each side are also included, such as on the left side, they include content creators, producers of the documents but also the catalogers who provide the descriptions or the metadata associated with each object.

This slide also shows a range of types of documents that might be accessible in a system. Chowdhury’s model also shows the outcomes of the representation process, by the human indexer as well as the computer processing the representations or documents, as well as the standards and tools that are used in the representation process.

In the middle is the search interface and IR technique that provide the matching function. On the right are the users within a societal context, which affects what they know and what types of knowledge they bring when they use an IR system.

At the bottom of this model are other factors, such as national, technological, etc. that affect the context in which an IR system exists. This is one of my favorite models for understanding the complexity of an IR system because it incorporates contextual factors into the model which have direct influence on the IR system and how it is used.

We will learn more about IR systems, models and how to evaluate IR systems in the later modules.

Types of IR Systems

Based on the different types of services, IR can be categorized as:

• Pre-Coordinate Systems

  • Printed indexes and catalogs
  • OPACs

• Post-Coordinate Systems

• Web Search

• Personalized IR

• Enterprise/Institutional IR

• Domain-Specific IR

• Web Based IR System

• Digital Libraries

• Multimedia IR System

• Distributed IR System

• Conversational IR System

  • ChatGPT

Now that we’ve looked at the definition and scope of Information Retrieval, let’s consider the different categories of services that IR supports.

On the left, we see types that focus on context and users:

Web Search, the most familiar to all of us, where IR powers large-scale search engines across the open internet.

Personalized IR, which adapts results to individual user preferences and past behaviors.

Enterprise or Institutional IR, which focuses on retrieving information within organizations — for example, searching across company documents or academic repositories.

And Domain-Specific IR, which is specialized for a particular field such as medicine, law, or engineering, where terminology and relevance criteria are unique.

On the right, we have system-based services:

Web-Based IR Systems, which deliver retrieval through online interfaces.

Digital Libraries, which apply IR to structured, curated collections of academic and cultural material.

Multimedia IR Systems, which extend beyond text to include images, audio, and video retrieval.

And finally, Distributed IR Systems, which work across multiple, separate data sources — for example, federated search across libraries, or even across multiple company systems.

The important takeaway here is that IR isn’t one-size-fits-all. Different contexts whether public web search, personalized recommendation, or specialized domains, demand different architectures and retrieval strategies.

What Information Can You Find Online?

• Bibliographic citations
• Full-text documents
• Directory of reference sources
• Numeric data
• Images
• Multimedia files

Not to be flippant, but did you laugh the first time you heard someone say that you can find everything online?

It is very common misconception of users that they can access everything online. While the availability of content and what you can find online has definitely improved, not everything can be found online.

What is also key to remember is that you need to know which systems hold specific types of information, so you choose an appropriate system.

For example, if you are looking for a book to purchase you might use the Web and Amazon or Barnes and Noble. If you just want to borrow a book you would search for it in the library catalog and may find it easily accessible or the library may have to order it for you. (As I type this I realize this has also changed. With Amazon services you can now rent books and return them.)

To locate scholarly articles, like those usually required for research papers in your classes, you would use OU Libraries subject/discipline specific databases.

You can, in some instances, use Google Scholar, but often you end up with a citation that requires payment to access the actual article. AND Google Scholar is not as heavily indexed so you may miss relevant articles if you use different terms than what is in the Google Scholar index.

The point here is that choosing the correct system is critical in finding the useful information you need. We will talk about this more later in the course.

Issues to Consider

How is access to the Internet changing our user’s …………….?

• Expectations

• Ways of engaging with information

• Brains

• Information needs/seeking activities and behaviors

• Other thoughts?

Other issues to consider that we will explore together are, for example,

1. How have users expectations changed now that almost ubiquitous access to the Web is possible?
2. Has our way of engaging with information also changed?
3. Is there any effect on our brains due to the way we interact with online systems today?
4. Are there new sets of information behaviors that information professionals need to take into account? For example, how have using smart phones affected IR?
5. Other thoughts?

We will explore these issues and others together.

Putting It All Together

This class focuses on all aspects of IR from understanding more about users and their information needs, to system structures and IR techniques, to how to capitalize on these understandings to improve your own search abilities. It is also important to understand your own search process and where you might need to improve. This semester provides you will the opportunity to play with many different systems and to test out their features as you become a more proficient searcher and as you learn more about how IR works. My hope is that you enjoy the entire process!!
