Indexing Systems, Metadata, & Data Mining

Paper-M-108

Dr. Manika Lamba

11th June 2023

Indexing Systems

Introduction

  • Indexing operations have been performed intellectually by human indexers or quite a long time

  • Automatic systems have been developed recently where text analysis and indexing are performed by computers

  • The basic tasks involved in indexing are same, i.e. to analyse the content of a given document and represent the analysis by some content identifiers or keywords

  • Lancaster mentions that the process of subject indexing involves 2 distinct intellectual steps, conceptual analysis, and representation

  • Subject Classification includes arrangement of documents according to their subject content by

Introduction (Cnt.)

notational systems such as DDC, UDC, LoC Classification

  • Subject Indexing is the process to match the contents of documents with users’ queries and is represented in a natural language form such as PRECIS, POPSI, Relational Indexing, Chain Indexing

  • One basic problem involved in the process of subject indexing is the choice of appropriate keywords or descriptors though which index entry is to be represented

  • The indexer prefers to use keywords that represents the subject clearly & likely to be chosen by user when looking for the subject

Introduction (Cont.)

  • In order to standardize the task of choosing appropriate keywords for generation of index entries, no. of vocabulary control devices have been developed such as thesaurus

  • These tools help the indexer to choose most appropriate term to represent the subject at indexing stage and help the users to pick most appropriate terms while formulating a query

  • 2 different indexers may analyse content of a given document in 2 different ways resulting in 2 different index entries (Serious Drawback of Manual Indexing)

  • To avoid total dependence on human intellect, researchers have attempted to automate the whole process of subject indexing & classification

Introduction (Cont.)

  • Most of the systems developed so far for automatic content analysis are based on statistical calculation of occurrence of keywords in the documents

  • Given the shortcomings of such statistically based systems, researchers have suggested the need of syntactic & semantic analysis of text statements by using computational linguistics in the process of content analysis

  • Subject indexing systems have been classified broadly as pre-coordinate and post-coordinate systems

  • In post-coordinate systems, one entry is prepared for each keyword selected to represent the subject of a given document and all entries are organized in a file

Introduction (Cont.)

  • When a user puts forward a query, it is analyzed and some keywords are selected that are representative of user’s query. These query terms are then matched against the file of index terms and relevant documents are retrieved. EG. Uniterm
  • In pre-coordinate systems, keyword chosen at subject analysis stage are coordinated at indexing stage and thus each entry represents full content of the document. EG. PRECIS, POPSI, Chain Indexing, Relational Indexing

Exhausitivity and Specificity (Cnt.)

  • Effectiveness of an indexing system is controlled by 2 parameters called exhaustivity & term specificity

  • Exhaustivity is the degree to which subject matter of a given document has been reflected through index entries. It represents the contents of input documents fully

  • To attain exhaustivity, system has to select as many keywords as possible to represent the idea put forward in the document

  • Specificity refers to how broad or how specific are the terms or keywords chosen under a given situation. More specific the terms, better is the representation of the subject through the index entry

Exhausitivity and Specificity (Cnt.)

  • Recall & Precision measure the effectiveness of a systems where

– Recall = No. of relevant documents retrieved / No. of relevant documents in the collection

– Precision = No. of relevant documents retrieved / Total no. of documents retrieved

  • More Exhaustivity, higher recall & lower precision

  • More Specificity, higher precision & lower recall

Theory of Indexing

  • Some researchers like Quinn, Jones, and Fugmann suggested there are 5 levels in process of indexing

  • First Level is the concordance, which consists of references to all words in original text arranged in alphabetical order

  • Second Level is the information theoretic level which calculates the likelihood of a word being chosen for indexing based on its frequency of occurrence in a given text document

  • Third Level is the linguistic one, which attempts to explain how meaningful words are extracted from large units of text. Some indexers propose that sections like opening paragraphs, chapters, sections, opening &

Theory of Indexing (Cnt.)

closing sentences of a paragraph are good sources of choosing indexing terms

  • Fourth Level is the textual or skeletal framework where the text is prepared by the author in an organized manner and held together by skeletal structure

  • Fifth Level is the inferential level where indexer make inferences about relationships between words and phrases by observing the sentences and paragraph structure

Manual Indexing

Manual Indexing (Cnt.)

  • Effectiveness of an indexing system and the performance of total retrieval system depends on exhausivity & specificity of index terms

  • A no. of vocabulary control devised are available to guide indexer in choosing most appropriate index terms

  • For example, in pre-coordnated systems like PRECIS use inbuilt/online thesaurus and POPSI uses classaurus (hierarchical classification incorporating all the features of a thesaurus)

  • In post-coordinated systems, after choosing the keywords, indexer has to put an index entry under each term separately along with necessary reference entries (‘see’ & ‘see also’ entries)

Pre-Coordinating Indexing Systems

1. Chain Indexing

  • Dr. S.R Ranganathan developed pre-coordinated indexing method called chain indexing

  • It attempts to represent the chain of concepts that constitutes a subject in natural language in contrast to the steps of classifying a document where we use artificial (notation) language for subject indexing

  • Thus, if we can represent subject in natural language and can represent all terms/concepts in chain forming the subject statement in a systematic manner, then users can access subject matter by any of the constituent concepts

1. Chain Indexing (Cnt.)

Basic steps in chain indexing are:

  1. Take class no. prepared for the given document
  2. Consult corresponding classification schedule and write the notations at each step and the corresponding term or phrase (from the schedule). This will produce a chain of concepts from general to specific
  3. Identify the sought, unsought, and false links
    • Sought links denote the concepts that user is likely to use as access point
    • Unsought links are those that are not likely to be used as access points

1. Chain Indexing (Cnt.)

  • False links are those that are really do not represent any valid concept (mostly these are the connecting symbols)
  1. Invert the chain (process is called reverse rendering), and this will generate index entries

2. Relational Indexing

  • J.E.L. Farradane devised a scheme of pre-coordinate indexing known as relational indexing

  • It was developed first in early 1950s and has been modified several times since then. The latest changes were appeared in 1980

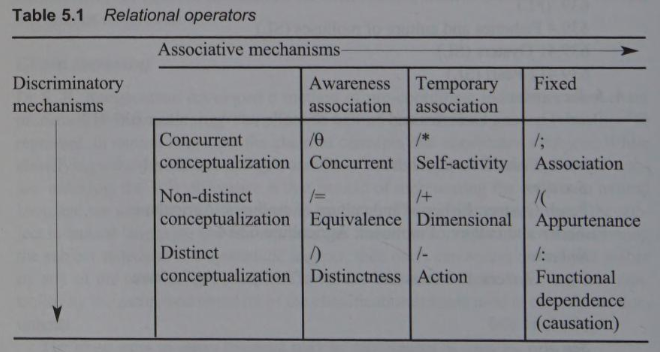

  • Farradane identified 9 relational categories which were represented in a

matrix

2. Relational Indexing (Cnt.)

  • Any subject can be represented by identifying & representing in the form of what he called analets (pairs of terms interposed by an operator), relationship between each pair of constituent concepts can be represented by the 9 relational operators

2. Relational Indexing (Cnt.)

3. PRECIS

  • PREserved Context Index System (PRECIS) was developed by Derek Austin and first came out in 1974 and revised in 1984

  • It became very popular and the major tasks involved in indexing in this system are:

    • analysing the concerned document and identifying the key concepts
    • organizing the concepts into a subject statement based on principle of context dependency
    • assigning codes (‘operators’) which signify syntactical function of each term
    • deciding which terms should be the access points

3. PRECIS (Cnt.)

  • Major tasks:
    • and which should be in other positions in index entries and assigning further codes to achieve these results
    • adding further prepositions, auxiliaries or phrases which would result in clarity and expressiveness of the resulting index entries
    • making supporting reference entries from semantically related terms taken from a thesaurus

3. PRECIS (Cnt.)

  • Primary operators (mainline operators) perform the primary task in the syntactical side. There are 7 primary operator for 3 sets of concepts
    • 0 is for ‘environment of core concepts’
    • 1,2,3 are for ‘core concepts’
    • 4,5,6 are for ‘extra-core concepts’

3. PRECIS (Cnt.)

  • Stages 2 to 4 deal with syntactic relation and are governed by

    • schema of role operators, and
    • associated rules for dealing with each role operator and making index entries

  • There are 2 kinds of operators: primary & secondary

  • There are 2 sets of primary codes: one set (theme interlinks) involves 3 codes used to link common or related themes in the subject statement

  • Other (term codes) involves 3 codes used to denote status of a term in subject statement

3. PRECIS (Cnt.)

  • There are secondary codes which are divided into 2 sets

  • First set is differences and it involves 3 kinds of differences such as ‘preceding differences’, ‘date as a difference’ and ‘parenthetical differences’

  • Second set involves ‘connectives’ which are used to connect any two or more consecutive terms in input string

  • There are some typographic codes which are used to bring desired typographic form of a given term in resulting index entry

3. PRECIS (Cnt.)

  • Secondary operators (interposed operators) perform secondary functions and are used for 3 sets of concepts: f, g are for ‘coordinate concepts’; p, q, r are for ‘dependent elements’; s, t, u are for ‘special classes for action’
  • Example of PRECIS entries:

Subject statement: Management of libraries in India

Entries:

  • Management

    • Libraries. India

  • Libraries. Management

    • India

  • India. Libraries. Management

4. POPSI

  • POstulated-based Permuted Subject Indexing (POPSI) is a pre-coordinated indexing system developed by G. Bhattacharyya

  • It uses analytico-synthetic method for string formulation and permutation of constituent terms to satisfy different approach points to document

  • There are 2 parts in POPSI index entry

    • Lead Heading which contains index term or access term
    • Context Heading which appears in line following lead heading & contains subject words with auxiliary words denoting the context in which lead term has been discussed in given document

4. POPSI (Cnt.)

  • He proposed 4 elementary categories, discipline, entity, property, and action (DEPA in short) and a special component called modifier

  • Accd. to POPSI, a discipline is an elementary category which includes conventional fields of study or any aggregate of such fields or artificially created analogous fields such as physics, library science, computer science

  • Entity includes manifestations having perceptual correlates, or only a conceptual existence, and distinct from properties and actions performed by them or on them. EG. patent, lung, plant, so on

4. POPSI (Cnt.)

  • Property includes manifestations denoting concept or attribute - qualitative or quantitative. EG. specific gravity, disease, efficiency, so on

  • Action includes manifestations denoting concept of doing, either as self action or as external action. EG. evaluation, examination, migration

  • In relation to manifestation of any one of the elementary categories the modifiers qualifies the manifestations without disturbing their conceptual wholeness. EG. ‘subject’ in ‘subject classification’

  • A modifier can modify any of the fundamental categories or a combination of fundamental categories

4. POPSI (Cnt.)

  • Modifiers can be common modifiers like form, time, environment, and place, and special modifiers, which are discipline-based, property-based or action-based

  • Basic rule of syntax is associated with deep structure of a subject indexing language is that discipline should be followed by entity appropriately interpolated or extrapolated wherever warranted by property and/or action

  • There are other rules that govern syntactical structure of POPSI such as

    • manifestation of property follows immediately the manifestation in relation to which it is a property

4. POPSI (Cnt.)

  • manifestation of action follows immediately the manifestation in relation to which it is an action

  • property & action can have another property and/or action directly related

  • species or part follows immediately the manifestation in relation to which it is a species (genus-species relation such as Flower and Rose) or part (whole-part relation, such as Human Body & Lungs)

  • modifier follows immediately the manifestation in relation to which it is a modifier

4. POPSI (Cnt.)

Post-Coordinate Indexing Systems

1. Uniterm

  • Uniterm was developed by Mortimer Taube in 1953

  • It is a simple post-coordinate indexing system

  • It creates index entries for each unit term identified by the indexer

  • The term is posted on top of card and the card is divided into 10 columns, 0 to 9

  • Document no. (i.e. accession no. or no. of given document being indexed) is written on the card by a technique called ‘terminal digital posting’ - no. written in a column based on right-most digit in document no.

1. Uniterm

  • Fig. shows entries for 2 subjects: automation of libraries in India (document no. 13) and management of libraries in England (document no. 45)

  • During searching, user has to pick up all the cards related to his/her search request and has to identify those numbers that appear in all the cards

- Process of comparing no. is quite difficult specially for large collection of documents

2. Optical Coincidence/Peek-a-Boo Cards

  • It was devised to overcome the manual searching problem of Uniterm

  • It is based on a simple principle: each card is divided into small units of numbered squares, each unit bearing a specific no. and a document no. is punched on appropriate position on the card

  • Thus, no. of small holes are produced on each card, each hole representing a particular document no. in which the term written on top of the card appears

  • During searching, user has to pick up all the cards matching a given query. Cards are then placed in a box

2. Optical Coincidence/Peek-a-Boo Cards

against source of light. Light will pass thorough those cards that have punched at the same position

  • No. represented by these positions will contain all the terms present in the query and thus will be the output

  • A peek-a-boo card contains space at the top of heading for posting of a term/phrase like a Uniterm card, and the body of the card is divided up to into numbered squares ranging from 500 to 1000 or upto 10,000

  • This system removed some problem by Uniterm cards but if there were a large no. of punches on card, it could easily become mutilated after being used a no. of times

Automatic Indexing

  • In LIS ‘Automatic Indexing’ is interchangeably used used with term ‘computerized indexing’

  • Use of computer in generating indexes of documents started from KWIC indexing developed by H.P.Luhn

  • Keyword indexing system was originally developed by Andrea Crestadoro in 1956 under name ‘Keywords in Titles’ which was revised later to Keyword-in-Context (KWIC) in 1958

  • Each entry in KWIC index consists of 3 parts:

a) Keywords: Subj. denoting words which serve as approach terms

Automatic Indexing (Cnt.)

b) Context: Keywords that specify particular context of document (rest of terms of the title)

c) Identification or Location Code: Code used (serial no. of entries in main part) to provide address of document where full bibliographic description of document will be available

  • No. of varieties of keyword index are there in literature which differ in terms of their formats but indexing techniques & principles remain more or less same such as:

1. KWOC (Key-Word Out-Of-Context) Index where each keyword is taken out & printed separately in left hand

Automatic Indexing (Cnt.)

margin with complete title in its normal order printed to the right

2. KWAC (Key-Word Augmented-in-Context) Index provides enrichment of keywords of title with additional keywords taken either from abstract or from original text of document and are inserted into title or added at the end to give further index entries

3. KWWC (Key-Word-With-Context) Index where part of title relevant to keyword is considered as entry term

4. KEYTALPHA (Key-Term Alphabetical) Index is a permuted subject index that lists only keywords assigned to each abstract

Automatic Indexing (Cnt.)

5. WADEX (Word & Author Index) is an improved version of KWIC index where names of authors are also treated as keywords in addition to significant subject term and thus facilitates to satisfy author approach of documents

6. DKWTC (Double KWIC) Index is another improved version of KWIC index

7. KLIC (Key-Letter-In-Context) Index allows truncation of word either in beginning or at the end where a fragment can be specified and computer can pick up any term containing that fragment

PREVIOUS YEAR QUESTIONS

Long Questions (12.5 Marks)

  1. Explain by giving examples, salient features of Pre-Coordinate & Post-Coordinate System of Indexing

  2. Write essay on Keyword Indexing System

  3. Define the concepts of ‘Index’, ‘Indexing’, ‘Indexing System’. Discuss suitable examples with major landmarks in indexing systems

  4. Write an essay on POPSI

  5. When you mention ‘automatic indexing’ what exactly do you mean? Explain how to use Microsoft Word to construct an automatic index

PREVIOUS YEAR QUESTIONS

Short Questions (5 Marks)

  1. Pre-coordinate indexing
  2. Chain Indexing
  3. Automatic Indexing
  4. Postulates in POPSI
  5. Evaluation of Indexing Systems

Metadata

Metadata

  • ‘Data which describes attributes of a resource’

  • ‘Meaningful data describing another discrete data object’

  • ’Data associated with objects which relieves their potential users of having to have full advance knowledge of their existence or characteristics

Types of Metadata

A. Descriptive Metadata: It is used to describe a document. To locate & identify documents, it is very imp. element. Field 856 in MARC, Call No. in Catalogue Card, Uniform Resource Identifier (URI) in web document all act as location identifier liker IDENTIFIER in Dublin Core Metadata. It helps to distinguish version & curatorial info. of documents

Types of Metadata (Cnt.)

B. Structural Metadata: It describes internal organization. Physical files and structure of logical objects are connected through structural metadata

C. Administrative Metadata: It provides info. designed for management of resources. During the creation of a document, the info. generated along the process which become integral part of the document is regarded as admin. metadata such as Ordering, Acquisition, Maintenance, Licensing, Rights, Ownership, Provenance

D. Rights Management Metadata: It is related to IPR which ensure that material is distributed correctly and rightful compensation is given to rights holder

Types of Metadata (Cnt.)

E. Preservation Metadata: It is used for ‘digital longevity’. Preservation Metadata: Implementation Strategies or PREMIS is an example of standard metadata used in digital preservation. OCLC & Research Library Group built the PREMIS

F. Technical Metadata: It is used to keep info. regarding software & hardware. technical info. on digitization (file, format, size, type, date of creation, compression scheme, security, etc.).

Dublin Core Metadata

  • Dublin Core Metadata Workshop Series began in 1995 to develop discovery standards for electronic resources

  • The first meeting took place in Dublin, Ohio and gave rise to metadata format called Dublin Core

  • It has 15-element set of descriptors intended to promote author-generated description of internet resources

  • It falls into 3 groups which indicate the class/scope of info. stored in them

  • Elements related to content of resources; resources when viewed as IP; instantiation of resources

Dublin Core Metadata (Cnt.)

Dublin Core Metadata (Cnt.)

  • Dublin Core Metadata Editor is a service that retrieves a given webpage and automatically generate Dublin Core metadata

  • It also allows users to edit the tags or add or edit contents

  • Following are the Dublin Core standard characteristics:

    • Core set can be extended with further elements for a particular domain
    • All elements are optional
    • All elements are repeatable
    • Any element may be modified by a qualifier

Data Mining

Data Mining

  • Every day an exponential amount of data is being generated over the Internet

  • For several years, advances in knowledge discovery in databases (KDD) have been undertaken to manage the information in an efficient manner

  • Data mining is a part of the KDD process, which identifies the hidden patterns in large information repositories

  • It involves several information extraction techniques, such as regression models, association rules, Bayesian methods, decision trees, neural networks, etc.

Data Mining Process

Data Mining Process (Cnt.)

1. Problem Identification: Objectives of a research problem are identified

2. Pre-processing: Data is being prepared for pattern extraction where the raw text is transformed into some data representation format that can be used as input for the knowledge extraction algorithms

3. Pattern Extraction: Suitable algorithm to extract the hidden patterns is applied. The algorithm is chosen based on the data available and the type of pattern that is expected

4. Post-processing: Extracted knowledge is evaluated in this step

Data Mining Process (Cnt.)

5. Knowledge Usage: If the knowledge from the post-processing step meets the process objectives, it is put available to the users. Otherwise, another cycle is performed, making changes in the data preparation activities and/or in pattern extraction parameters

Data Harvesting

  • It refers to collecting & analyzing large amount of data from various sources such as social media, website

  • It aims to extract valuable insights & info. that can be used to make informed decisions & improve business operations

PREVIOUS YEAR QUESTIONS

Long Questions (12.5 Marks)

  1. Define concept of ‘Metadata’ by discussing various sets of elements. Describe the functions of a Metadata

  2. Discuss various types of Metadata element sets and its functions

  3. Explain the term ‘Metadata’. Discuss the role of metadata and Dublin Core Metadata Initiatives (DCMI) in the organization and management of e-resources

  4. What do you understand by ‘Data Mining’? Discuss the steps involved in data mining

Short Questions (5 Marks)

  1. Data Mining
